ASME Shell and Tube Heat Exchanger 200m² 10MPa Design Pressure
| Lugar de origen | Jiangsu, China |
|---|---|
| Nombre de la marca | sureway |
| Cantidad de orden mínima | 1 |
Póngase en contacto conmigo para muestras y cupones gratis.
Whatsapp. ¿ Qué quieres decir?:0086 18588475571
¿Qué quieres decir?: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Dimensión | 4500 1000 1500 | Volumen | 1 000 m3 |
|---|---|---|---|
| Material interno | Siliconcarbide/2205DuplexSteel Pipe/Pfalineds/316L | Material exterior | 304/acero alineado |
| Presión de diseño | 1-10MPa | Temperatura de trabajo | 196 - 300 ℃ |
| Peso | 2000 kg | Área del intercambio de calor | 200 m2 |
| Material | Q345R/316L/TA2/304/PTEE | Tubo de intercambio de calor | Tubería compuesta de carburo de ppt/silicio puro |
| tipo de brida | PP Brida/304 Anillo de refuerzo de acero inoxidable | Número de tubos | 2 viajes |
| Componentes centrales | Recipiente a presión | Estándar de diseño | Asme |
| Normas de equipo | Asme | ||
| Resaltar | 200m² Shell and Tube Heat Exchanger,ASME Shell and Tube Heat Exchanger,10MPa Shell and Tube Heat Exchanger |
||
Descripción de producto
Shell and Tube Heat Exchanger
Product Specifications
| Attribute | Value |
|---|---|
| Design Pressure | 1-10 MPa |
| Working Temperature | 196°C - 300°C |
| Warranty | 1 Year |
| Weight | 2000 KG |
| Volume | 1000 m³ |
| Dimensions (L×W×H) | 4500 × 1000 × 1500 mm |
| Heat Exchange Area | 200 m² |
| Number of Tubes | 2 trips |
| Design Standard | ASME |
Key Features
- Enhanced heat exchange performance with 200m² heat exchange area
- Robust construction with Q345R/316L/TA2/304/PTEE materials
- Pressure resistance up to 10 MPa
- Precision temperature control with high-accuracy tubes
- Low maintenance design with modular structure
- Energy-efficient operation for cost savings
- Customizable design for various industrial applications
- ASME certified for safety and reliability

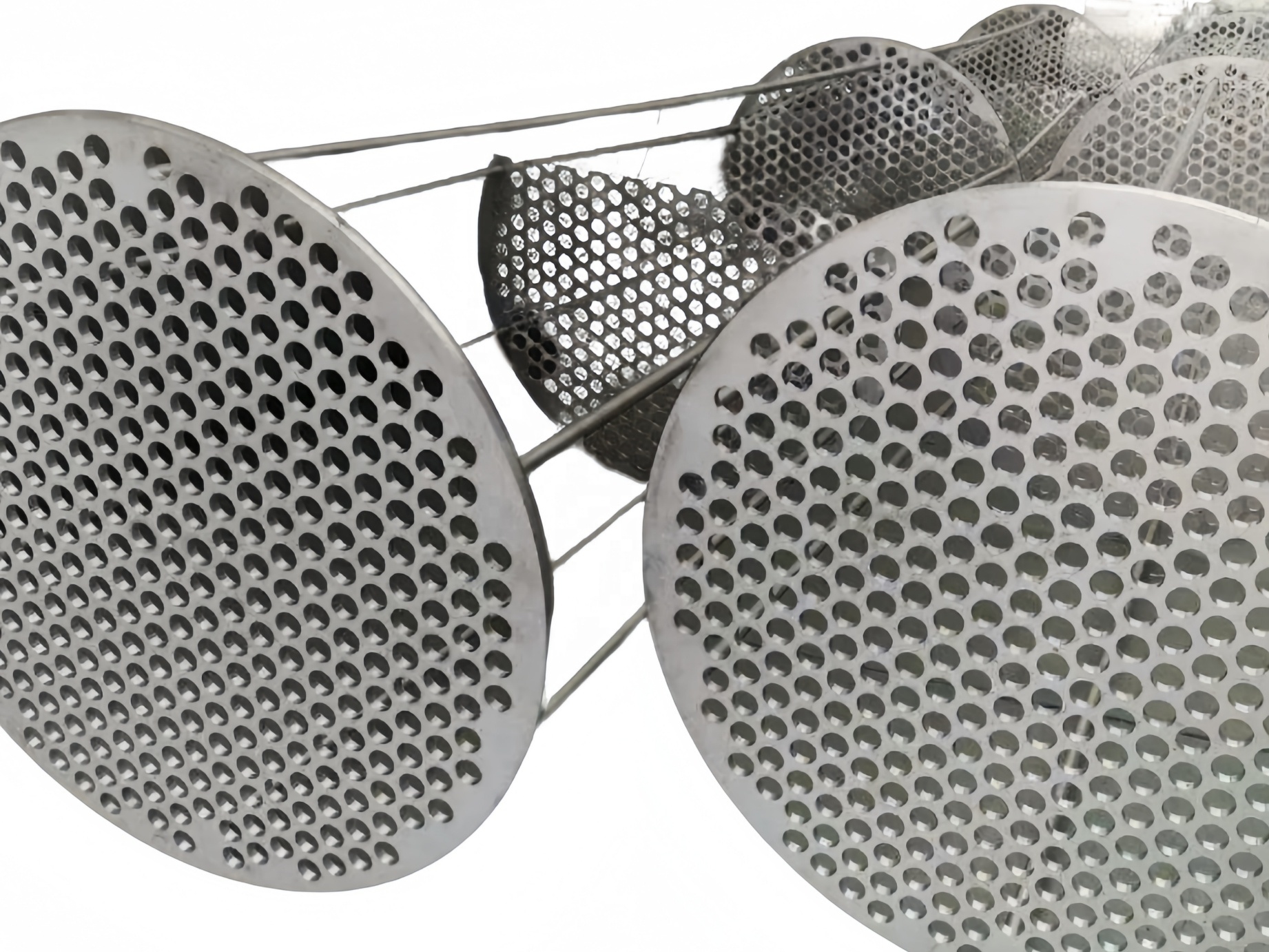

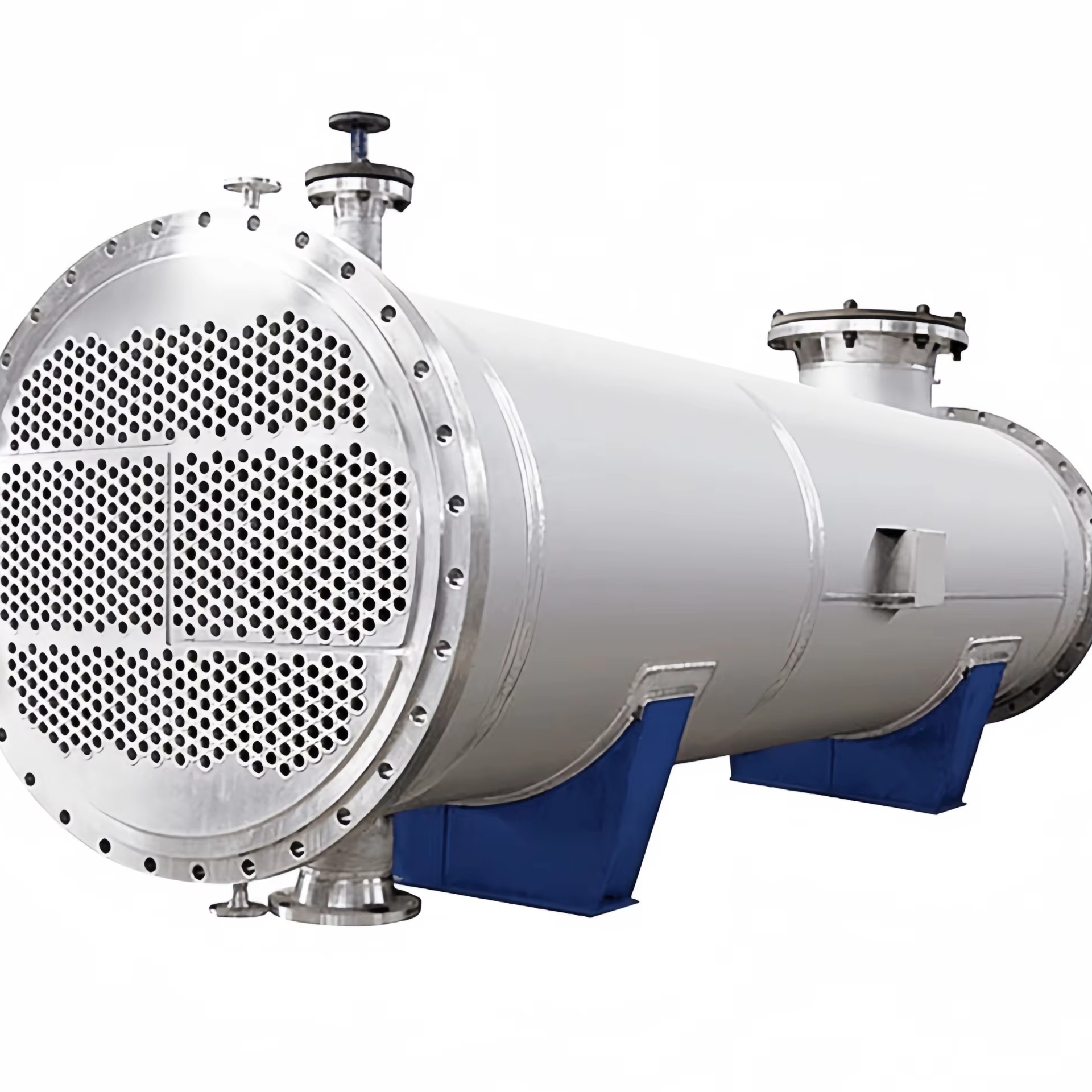

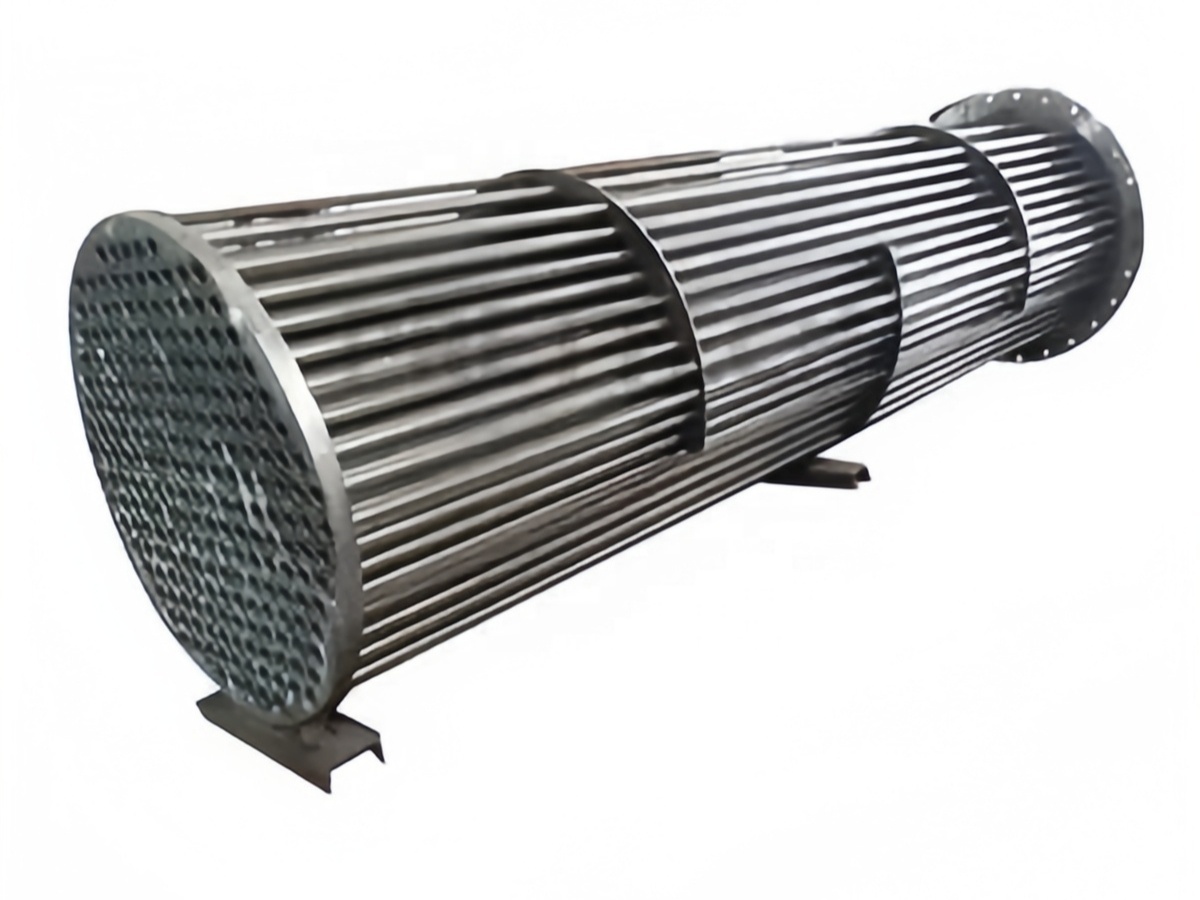

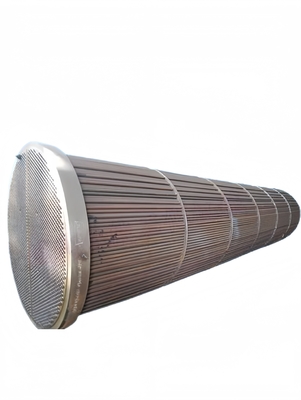

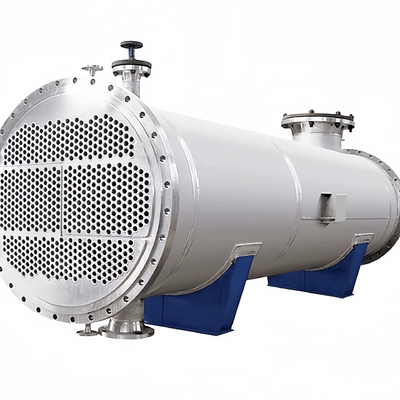

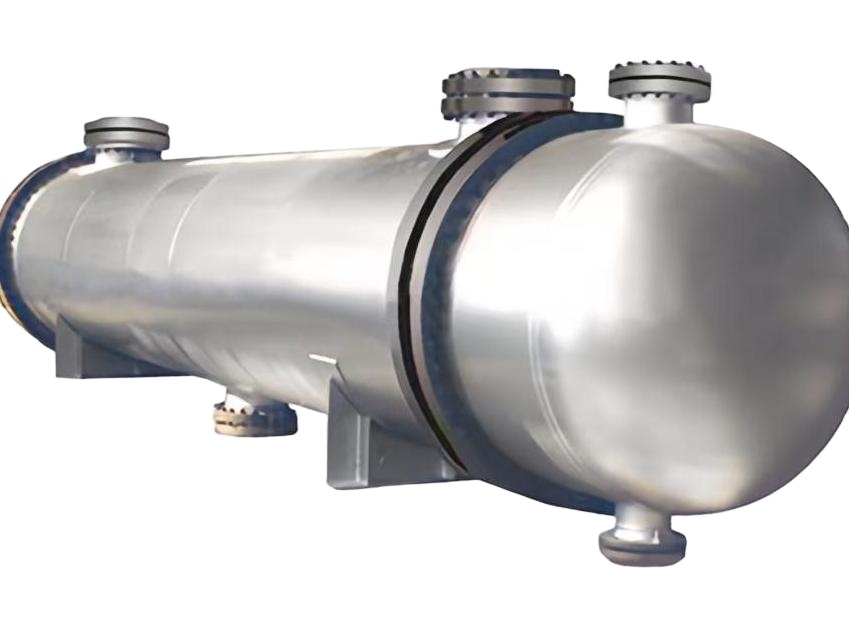

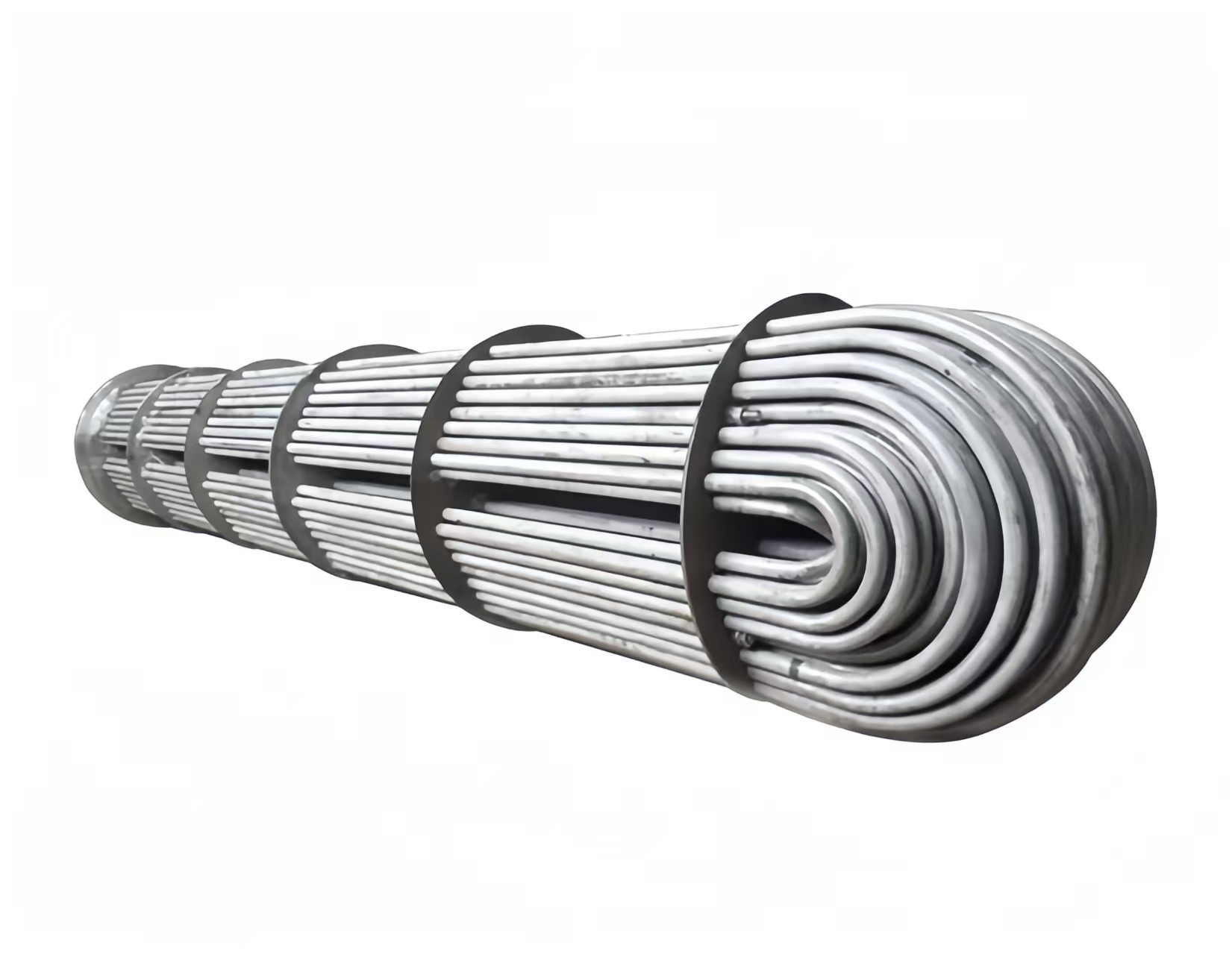

Product Images
Technical Specifications
| Component | Material |
|---|---|
| Inner Material | Silicon Carbide / 2205 Duplex Steel Pipe / PFA Lined / 316L |
| Outer Material | 304 / Steel Lined PPY |
| Heat Exchange Tube | Pure PPT / Silicon Carbide Composite Pipe |
| Flange | PP Flange / 304 Stainless Steel Reinforcement Ring |
Product Advantages
- High Efficiency: Optimized design for maximum heat transfer with minimal energy loss
- Durability: Corrosion-resistant materials ensure long service life
- Safety: Built to withstand high pressures with multiple safety features
- Versatility: Suitable for various industrial processes and temperature ranges
- Maintenance: Easy disassembly for cleaning and maintenance
Manufacturer Information
Shanghai Sureway Industrial Company Limited specializes in chemical engineering technology and equipment manufacturing. With over a decade of experience, we provide innovative solutions for chemical processing, gas separation, and industrial automation systems. Our expertise includes:
- LNG and CO2 plant equipment
- Sulfur-based chemical production technology
- Pressure vessels and heat exchangers
- Industrial automation systems
Frequently Asked Questions
Where are you located?
We are based in Shanghai, China, serving clients worldwide including Africa, Southeast Asia, Mid East, and North America.
How do you ensure product quality?
We conduct pre-production samples and final inspections before shipment, with video outgoing-inspection and machinery test reports provided.
What payment methods do you accept?
We accept T/T, L/C, Credit Card, PayPal, Western Union, and other major payment methods in USD, EUR, or CNY.
